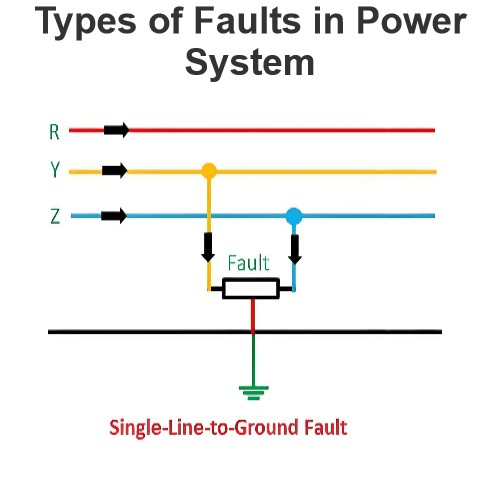

Power System Faults: Definition and Classification A fault in a power system is defined as an anomaly or defect that causes the electric current to deviate from its intended flow path. When a fault occurs, it creates abnormal operating conditions, primarily by reducing the insulation strength betwee

Under normal operating conditions, a power system functions in a balanced state, with electrical parameters such as voltage and current distributed evenly across all phases. However, when insulation fails at any point within the system or live wires come into unintended contact, the system's balance

The Method of Symmetrical Components In an unbalanced electrical system, voltages, currents, and phase impedances are typically unequal. To analyze and solve such systems, the method of symmetrical components, also known as the three - component method, offers an effective approach. This technique s

HVDC Circuit Breakers: Functionality, Challenges, and Solutions An HVDC (High - Voltage Direct Current) circuit breaker is a specialized switching device designed to interrupt the flow of abnormal direct current within an electrical circuit. When a fault occurs in the system, the mechanical contacts

Air Blast Circuit Breakers: Operation, Advantages, and Types An air blast circuit breaker utilizes compressed air or gas as the arc - interrupting medium. Compressed air is stored in a tank and, when needed, released through a nozzle to generate a high - velocity jet. This jet plays a crucial role i

Circuit Breaker Testing: Challenges and Procedures Testing circuit breakers is a far more intricate task compared to testing other electrical equipment such as transformers or machines, primarily due to the extremely large magnitudes of short - circuit currents involved. In contrast, the testing of

Definition of Overhead Earth Wire (Ground Wire) An overhead earth wire, also known as a ground wire, is a crucial component of lightning protection systems. It consists of one or more conductors that are installed above the transmission line, stretching from one support structure to another. These w

Characteristics and Materials of Fuse Elements The materials selected for fuse elements must possess a specific set of properties. They need to have a low melting point, ensuring that the fuse will melt quickly when an excessive current flows through it, thereby interrupting the circuit and protecti

Balanced Earth Fault Protection Scheme for Small Generators The balanced earth fault protection scheme serves as a crucial safeguard, predominantly utilized for the protection of small generators in scenarios where differential and self - balanced protection systems are not viable options. In small

Rotor Earth Fault Protection in Generators The rotor of a generator is typically left unearthed, meaning it remains electrically isolated from the ground. As a result, a single insulation breakdown fault will not immediately cause a significant fault current to flow. Initially, such a single fault m

Earth Faults: Causes, Impacts, and Protective Measures An earth fault occurs when there is an unintended electrical connection between a live conductor and the earth. This typically happens due to insulation breakdown, which can be caused by factors such as aging of electrical components, mechanical

Definition A differential protection relay is one whose operation hinges on the phase difference of two or more electrical quantities. It operates based on the principle of comparing the phase angle and magnitude of the same electrical quantities. Example Take the comparison of the input and output
