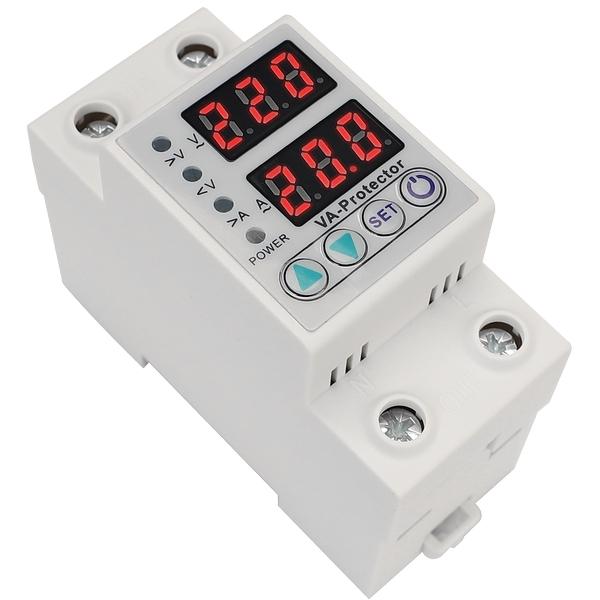

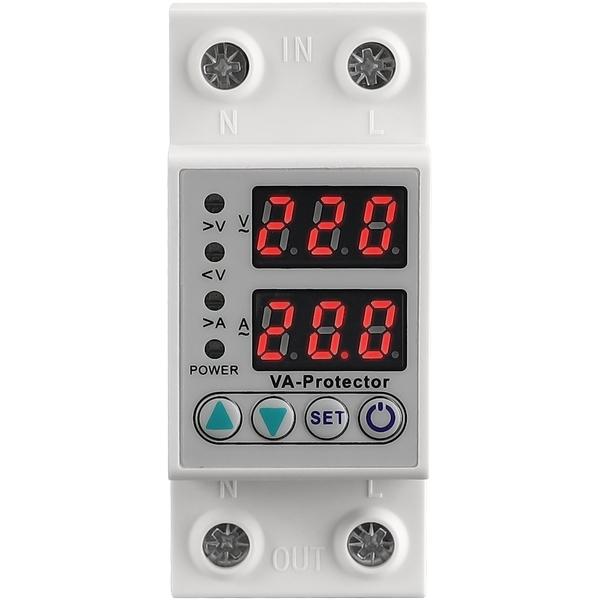

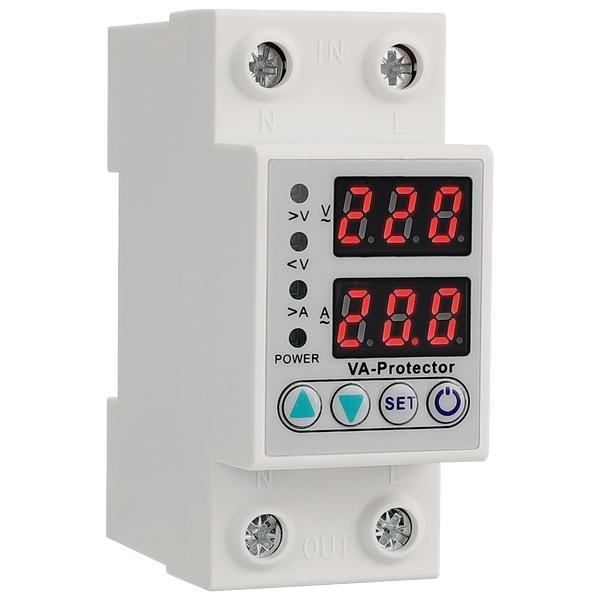

VANP 2P Voltage – current protector

Product Introduction: VANP-2P is an intelligent 2P overvoltage and undervoltage protection device suitable for single-phase AC 220V/50-60Hz power grid environment. It integrates overvoltage protection, undervoltage protection, and overcurrent protection functions. By accurately monitoring the line voltage and current, it quickly acts and cuts off the circuit when abnormal situations beyond the safe range are detected; After the power grid parameters return to normal, it can automatically reset and connect according to the set time, providing continuous security for the backend load.

VANP-2P self resetting overvoltage and undervoltage protector product features:
1. Precise monitoring and rapid response:
Adopting high-precision voltage detection circuit (with an error not exceeding 2% of the total range), it can sensitively perceive small changes in grid voltage. When the abnormal voltage reaches the set threshold (overvoltage ≥ 230V, undervoltage ≤ 140V), the device can quickly cut off the power supply within the set tripping delay time (adjustable from 0.1 seconds to 30 seconds), effectively suppressing the impact of abnormal voltage on sensitive equipment.
2. Intelligent recovery management:
Different from disposable protective devices, it has intelligent self reset function. After the grid voltage stabilizes and returns to the safe range (140V-210V), the device will automatically close again according to the preset reset delay time (adjustable from 1 second to 500 seconds) to restore power supply. This design not only avoids frequent disconnections caused by brief fluctuations in the power grid, but also ensures the stability of power supply recovery.
3. Integrated overcurrent protection:
In addition to voltage protection, the integrated overcurrent protection function (current setting range 1~63A) provides more circuit safety protection and prevents accidents caused by line overload or short circuit.
4. High reliability and long lifespan design:
The core components and structural design focus on durability, with an electrical lifespan of up to 100000 operations and a mechanical lifespan of up to 1000000 operations, reducing maintenance costs and replacement frequency, making it suitable for situations that require long-term reliable operation.
5. Flexible parameter configuration:
Users can flexibly set the overvoltage and undervoltage action threshold, as well as the tripping delay, based on the actual characteristics of the electrical equipment and the power grid conditions
Realize personalized customization of protection strategies with delay time for interval and reset
