Three phase dry type renewable energy Grounding Transformer 27kV 33kV 34.5kV 35kV

Name: Three phase dry type renewable energy Grounding Transformer 27kV 33kV 34.5kV 35kV
Brand: Zhejiang Vziman Electric Group Co., Ltd.
SKU: 2798
Availability: InStock

Zhejiang Vziman Electric Group Co., Ltd.

14yrs 300+ staff 10000+m² US$150000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	Vziman
Model NO.	Three phase dry type renewable energy Grounding Transformer 27kV 33kV 34.5kV 35kV
Rated capacity	125kVA
Rated primary voltage	10.5kV
Series	SJD

Description

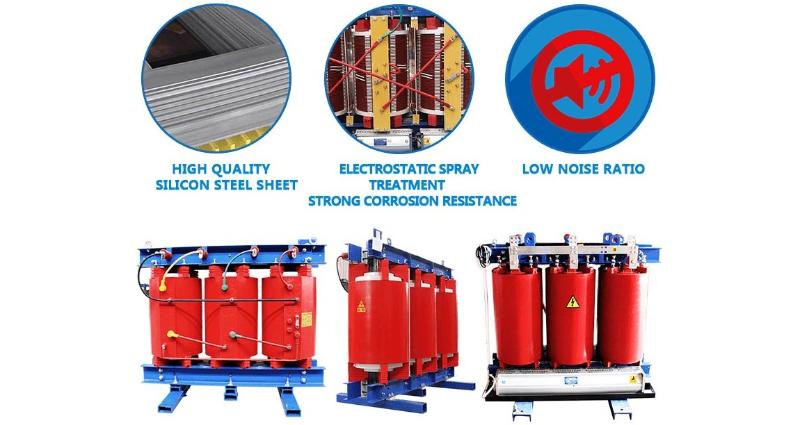

Dry-type Grounding Transformer product Introduction

Dry-type Grounding Transformer and renewable energy Grounding Transformer provide reliable grounding paths for unbalanced load and fault currents in ungrounded systems.

These transformers typically adopt two configurations: Zig-Zag (Zn) (with/without auxiliary winding) or Wye (Ynd) with delta secondary. The cost-effective, compact Zig-Zag connection is preferred for both Dry-type Grounding Transformer and renewable energy Grounding Transformer.

For enhanced safety, neutral ground resistors (NGR) are paired with Dry-type Grounding Transformer and renewable energy Grounding Transformer to limit fault current. NGR voltage, current rating and duration must match the parameters of the Dry-type Grounding Transformer, and the current rating should exceed cable charging and transformer magnetizing current.

Renewable energy Grounding Transformer Features

Tailored for Renewable Energy Scenarios：This renewable energy Grounding Transformer is engineered specifically for wind, solar, and other renewable power systems, providing stable artificial neutral points for ungrounded grids. Unlike the Dry-type Grounding Transformer that relies on oil insulation, its dry-type structure eliminates oil leakage risks, making it more suitable for eco-sensitive renewable energy stations.
Wide Voltage Compatibility：Covering 27kV, 33kV, 34.5kV, and 35kV voltage grades, the renewable energy Grounding Transformer flexibly adapts to diverse regional grid standards of renewable projects. Compared with the Dry-type Grounding Transformer, it features a more compact size, which saves installation space in distributed photovoltaic and wind power plants.
High Safety & Low Maintenance：The dry-type design of this renewable energy Grounding Transformer ensures excellent fire resistance, avoiding the potential fire hazards associated with the Dry-type Grounding Transformer in high-temperature environments. It requires no regular oil quality testing or replacement, significantly reducing the maintenance workload compared with the Oil-immersed Grounding Transformer.
Strong Synergy with Grid Equipment：This renewable energy Grounding Transformer supports multiple grounding configurations, and can work in coordination with the Dry-type Grounding Transformer in hybrid power grids that combine renewable and traditional energy sources. It effectively limits fault currents and transient overvoltages, safeguarding the stable operation of the entire power system.

Product Parameters

NO	Type	Rated primary voltage (kV)	Rated neutral point current(A)	Capacity (KVA)	Aero sequence impedance (Ω/phase)	Dielectric level (kV)	Connection group	Weight(kg)		Appearance size LWH(mm)	Gauge(mm)
								Oil Weight	Gross weight
1	SJD-100/6	6.3	28	100/50	Determined by both sides	L160/AC25	ZN/yn11	160	685	1200×800×1250	400×400
	SJD-100/10	10.5	16.5			L175/AC35
2	SJD-125/6	6.3	34.5	125/50		L160/AC25		170	695	1220×810×1250	400×400
	SJD-125/10	10.5	20.6			L175/AC35
3	SJD-160/6	6.3	44	160/50		L160/AC25		160	690	1290×840×1350	400×400
	SJD-160/10	10.5	26.5			L175/AC35
4	SJD-200/6	6.3	55	200/50		L160/AC25		235	1010	1450×360×1410	660×520
	SJD-200/10	10.5	33			L175/AC35
5	SJD-250/6	6.3	70	250/80		L160/AC25		265	1110	1430×1090×1420	660×660
	SJD-250/10	10.5	41			L175/AC35
6	SJD-315/6	6.3	87	315/80		L160/AC25		295	1310	1597×1090×1410	660×660
	SJD-315/10	10.5	52			L175/AC35
7	SJD-400/6	6.3	110	400/80		L160/AC25		365	1585	1610×1130×1480	820×820
	SJD-400/10	10.5	66			L175/AC35
8	SJD-500/6	6.3	138	500/80		L160/AC25		395	1820	1700×1200×1670	820×820
	SJD-500/10	10.5	82			L175/AC35
9	SJD-630/6	6.3	173	630/100		L160/AC25		545	2385	1730×1260×1670	320×820
	SJD-630/10	10.5	104			L175/AC35
10	SJD-800/6	6.3	2250	800/100		L160/AC25		655	2950	1820×1301×1740	820×820
	SJD-800/10	10.5	2050			L175/AC35

Three phase dry type renewable energy Grounding Transformer 27kV 33kV 34.5kV 35kV

Documentation Resource Library Renewable Energy Earthing

Restricted

Vziman Renewable Energy Earthing transformer Catalog Vziman Renewable Energy Earthing transformer Catalog

Catalogue

English

PDF

Frequently asked questions

What are the key advantages of a dry-type grounding transformer for renewable energy applications?

For renewable energy systems, a dry-type grounding transformer offers enhanced safety, environmental resilience, and low maintenance—making it ideal for wind and solar farms. Unlike oil-filled units, this renewable energy grounding transformer eliminates fire risks, resists harsh climates, and supports sustainable operations with reliable neutral grounding.

How does a dry-type grounding transformer improve system performance in renewable energy grids compared to conventional designs?

In renewable energy networks, a dry-type grounding transformer ensures stable voltage regulation and fault tolerance under variable loads. Specifically designed for clean power integration, this renewable energy grounding transformer reduces harmonics, prevents ground faults from escalating, and enables seamless compatibility with inverters and smart grid controls.
