| Brand | Vziman |
| Series | S-M |
| Primary Voltage | 33 kV |
| Secondary Voltage | 6.6 kV |
| Rated Power | 500kVA |
| Frequency | 60 Hz |
This customized 500kVA oil-immersed step-down distribution transformer has a primary-to-secondary voltage ratio of 33kV/6.6kV, which perfectly meets the voltage transformation requirements of the local power grid.

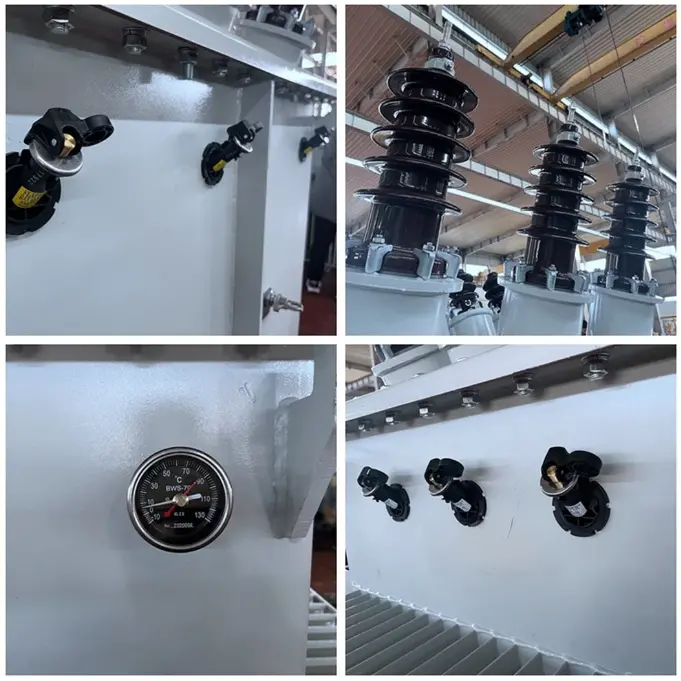

High-voltage and low-voltage fuses are fitted to strengthen protection against electrical faults. Meanwhile, the high and low voltage bushings are designed at a 45° inclined angle to enable easy and direct connection with overhead power lines.
Designed with advanced technology and premium materials, this oil-immersed transformer delivers reliable quality and long-term stable operation, fully meeting on-site power distribution requirements. All Vziman transformers pass strict full acceptance tests, maintaining a 0 fault rate for over 10 years. This oil-immersed distribution transformer is engineered in compliance with IEC 60076, ANSI and other major international standards, ensuring excellent compatibility and operational safety for global power grid applications.
|
Model |
S-M-500kVA-33/6.6 |
|
Standard |
IEC60076 |
|
Rated Power |
500kVA |
|
Frequency |
60 Hz |
|
Phase |
Three |
|
Cooling Type |
ONAN |
|
Primary Voltage |
33 kV |
|
Secondary Voltage |
6.6 kV |
|
Winding Material |
Copper |
|
Vector Group |
Dyn11 |
|
Impedance |
5.12% |
|
Tap Changer |
NLTC |
|
Tapping Range |
±2*2.5% @ Primary Side |
|
No Load Loss |
1.3 kW |
|
On Load Loss |
6 kW |
|
Accessories |
Standard Configuration |
500kVA 33/6.6kV Transformer Accessories
To provide an exact quotation, we need: rated capacity, primary/secondary voltage, frequency, vector group, tap changer type, impedance, installation site conditions (altitude, ambient temperature), and if possible, your loss or efficiency requirements. You can send us your technical specification sheet, and we will supply a complete parameter and quotation proposal accordingly.
Yes. We provide detailed installation and commissioning manuals together with the transformer. Remote technical guidance by experienced engineers is available, and on-site supervision service can be arranged if required (subject to separate quotation).
Transformers are packed with wooden crates, protected against moisture, shock and collision, suitable for sea, land or railway transport. We have experience shipping to many countries and can arrange complete export packing and transport according to your port and destination requirements.
The noise level is designed to meet the requirements of IEC 60076-10 standard. Exact noise value depends on capacity and cooling configuration. For noise-sensitive sites such as hospitals and residential communities, we can provide low-noise design. Please let us know your site requirement.
