Liquid-Cooling PACK

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	RW Energy
Model NO.	Liquid-Cooling PACK
Rated voltage	166.4V
Battery Capacity	52.249kWh
Series	1P

Product Detail

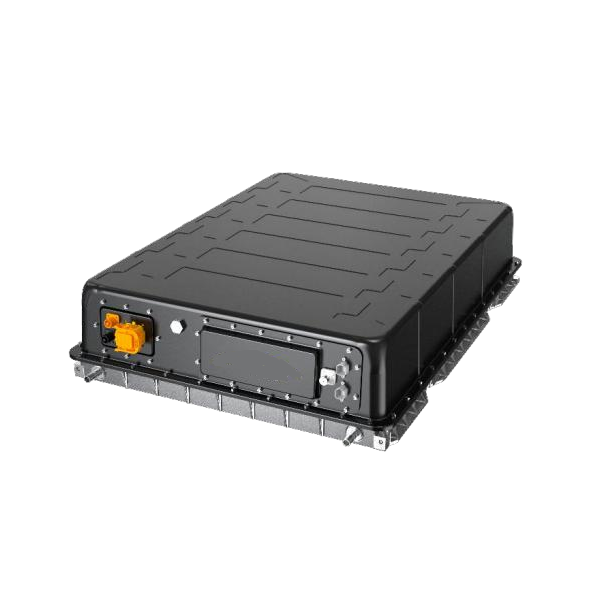

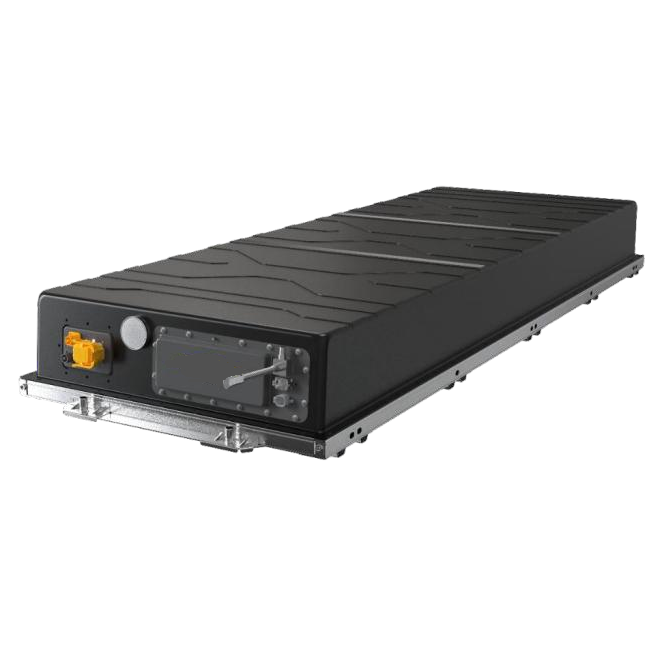

Liquid-Cooling PACK
◼ Efficient heat dissipation: Efficient liquid cooling design, compatible with 0.5P and 1P working conditions, PACK temperature difference ≤ 3°C
◼ Intelligent management: Equipped with intelligent voltage and temperature acquisition modules to improve utilisation efficiency ◼ Flexible expansion: Different module combinations to meet the needs of different application scenarios
◼ Safe and reliable: IP67 protection level, with PACK-level fire detection

Liquid-Cooling PACK	1P52S	1P104S
Rated voltage(V)	166.4	332.8
Rated capacity(Ah)	LFP-628	LFP-314
*Dimensions LWH*(mm)	2190 × 790 × 245	2190 × 790 × 245
Rated energy(kWh)	104.499	104.499
Weight(kg)	~665	~667

Liquid-Cooling PACK	1P48S	1P52S
Rated voltage(V)	153.6	166.4
Rated capacity(Ah)	LFP-314	LFP-314
*Dimensions LWH*(mm)	1091 × 787 × 234	1140 × 790 × 245
Rated energy(kWh)	48.230	52.249
Weight(kg)	~312	~321
