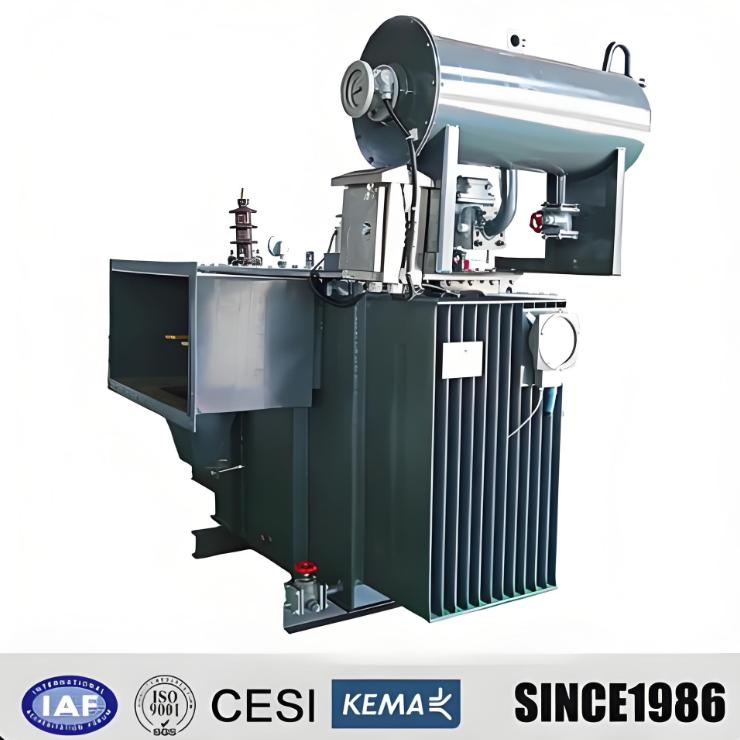

Durable H61 H59 5.5 kV 13.2kV 15kV 33kV Power Distribution Transformer for Sale
Key attributes
| Brand | Vziman |
| Model NO. | Durable H61 H59 5.5 kV 13.2kV 15kV 33kV Power Distribution Transformer for Sale |
| Rated voltage | 33kV |
| Rated frequency | 50/60Hz |
| Rated capacity | 2000kVA |
| Series | S |
Product descriptions from the supplier
Product Description
Medium Voltage Three Phase Oil Immersed Power Transformer /Distribution Transformer
Distribution transformer oil-immersed with power rating from 25 to 2500 kVA and Voltage 6-36/0,4 (0.23)kV. In 50/60 Hz power transmission and distribution system for power supply and lighting in industrial and agricultural field. Distribution transformers are produced with nominal Voltage in primary winding 6 up to 36 kV. Nominal Voltage in secondary winding is 0,4 or 0,23 kV. Scheme and connection group of windings U/Un-0 or D/Un-11, etc.
On the customer demand it is possible to make transformers with different connection of the Voltage s and other construction solution. Regulating the Voltage is made as a result of moving the switch, by the transformer detached from the net both high (HV) and low (LV) Voltages.
The Voltage is being regulated on the side of HV for ±2x2,5% value from nominal value. Exterior introductions HV and LV are removable and passers-by are made from china insulators. At great current 1000 A and more on the hard core current are contact clamps screwed properly with the spatula which connecting the track or the cable attachment assures. The expandability of oil assures appropriate works of the transformer at different weather conditions and fluctuations of the temperature. The dehumidifier is installed to provide dry air in transformer. For measuring the temperature of upper layers of oil on the casing a thermometer is installed. Transformers with power rating from 400 to 2500 kVA are occupied with wells to install in base.
Features
Energy saved :Compared with old type S7, no-load loss decreases 10.25% averagely and on-load current decreases 37.9%, which means 18.39% operation cost is reduced.
Long-term reliable service life:Fully enclosed transformer tank and rim shall be bolted together or welded firmly. Isolation between oil and air keeps insulation away from moisture, which lowers insulation aging and improves service life.
Free from untanking:Free from untanking before operation, so its cost is saved.
Free from maintenance
Low noise:Impacted structure in design, new material and new technology adopted and low noise.
Small size and artistic appearance:Owing to the corrugated plate used for radiation, oil volume is changed by adjustment and compensation through expansion and shrinkage of corrugated plate when the temperature of oil is changed. Corrugated tank is small size in good looking.
Transformer order information
a. Rated capacity
b. High and low rated voltage
c. Vector group
d. Impedance voltage
e. Tapping range
f. Frequency
g. Other(special)require
Main Technical Datas：
Some of these earthing transformers cover voltage levels including：3.3 kV 5.5 kV 6 kV 6.6 kV 7.2 kV 10kV 10.5kV 11kV 13.2 kV 13.8 kV 15kV 17.5 kV 20 kV 22kV 24kV 30 kV 33kV 34.5kV 35 kV 46 kVetc. and customization is available.
Model NO. |
S7-S9-S11 |
Core |
Core-type Transformer |
Cooling Method |
Oil-immersed Type Transformer |
Winding Type |
Two-winding Transformer |
Certification |
ISO9001-2000, ISO9001, CCC |
Usage |
Power Transformer |
Frequency Characteristics |
Power Frequency |
Shape of Core |
Ring |
Brand |
Vziman |
Color |
Gray, Green or Customized |
Transport Package |
Wooden Packing |
Specification |
IEC/ANSI/IEEE |
Trademark |
Vziman |
Origin |
China |
HS Code |
8504330000 |
Production Capacity |
20000 |
| Rated Capacity (KVA) | Voltage combination | Connection Symbol |
load loss (W) | No-load loss(w) 75 | No-load Current (%) |
Shirt-circuit Impedance (%) |
|
| HV (kv) | LV (kv) | ||||||
| 30 | 6 6.3 10 10.5 11 |
0.4 | Yyn0 Dyn11 |
100 | 600 | 2.1 | 4 |
| 50 | 130 | 870 | 2 | ||||
| 63 | 150 | 1040 | 1.9 | ||||
| 80 | 180 | 1250 | 1.8 | ||||
| 100 | 200 | 1500 | 1.6 | ||||
| 125 | 240 | 1800 | 1.5 | ||||
| 160 | 270 | 2200 | 1.4 | ||||
| 200 | 330 | 2600 | 1.3 | ||||
| 250 | 400 | 3050 | 1.2 | ||||
| 315 | 480 | 3650 | 1.1 | ||||
| 400 | 570 | 4300 | 1 | ||||
| 500 | 680 | 5100 | 1 | ||||
| 630 | 810 | 6200 | 0.9 | 4.5 | |||
| 800 | 980 | 7500 | 0.8 | ||||
| 1000 | 1150 | 10300 | 0.7 | ||||
| 1250 | 1360 | 12000 | 0.6 | ||||
| 1600 | 1640 | 14500 | 0.6 | ||||
| 2000 | 1960 | 18000 | 0.5 | ||||
| Note: we can design and manufacture special transformer as customers' requirements. | |||||||

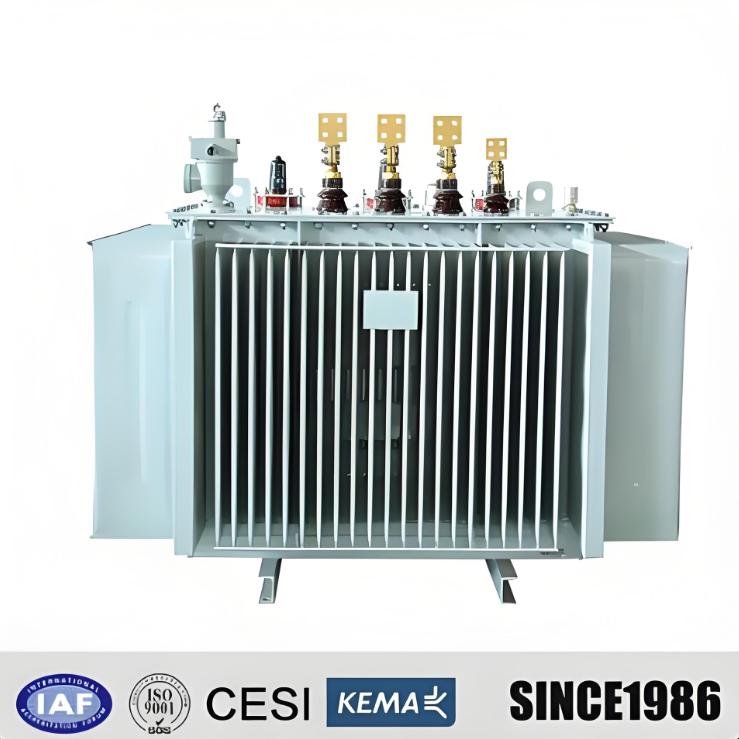

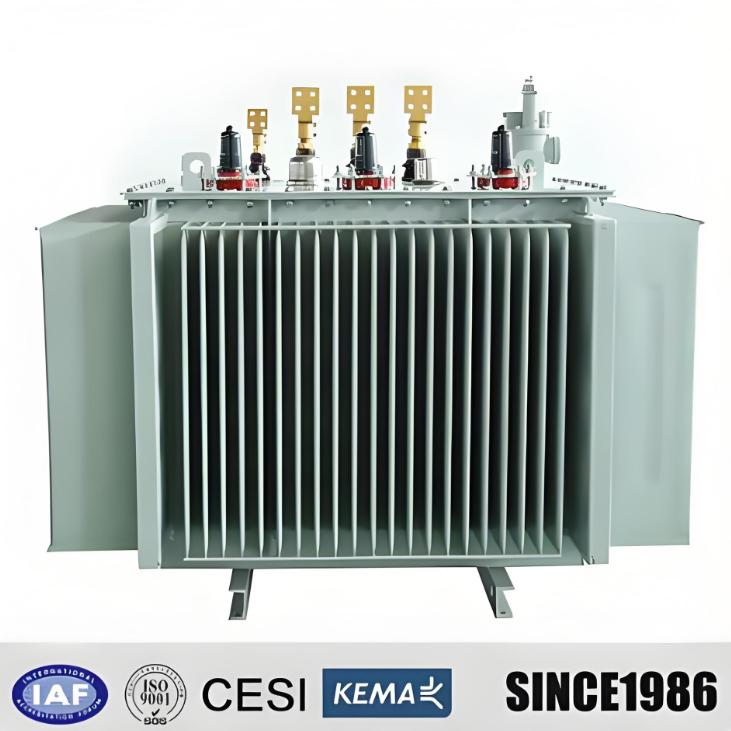

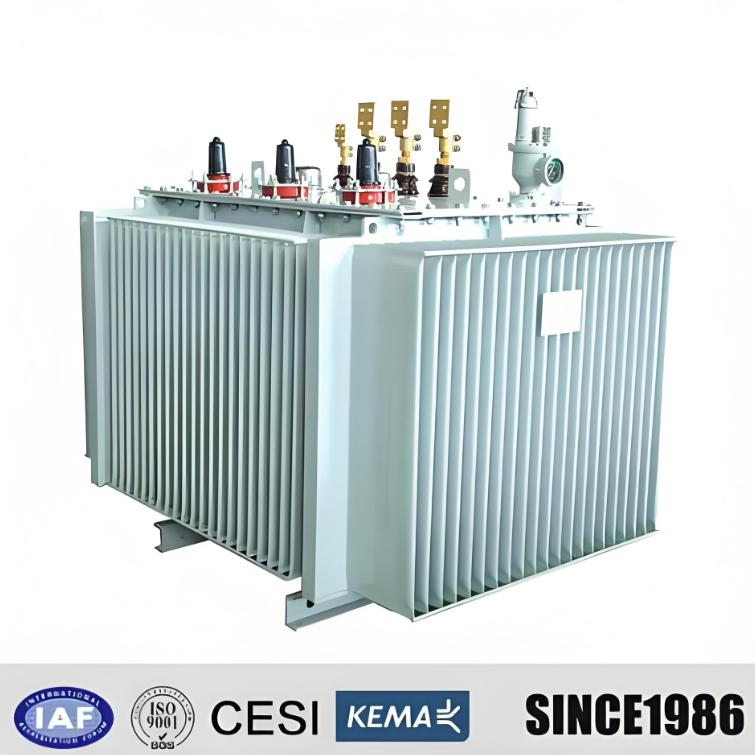

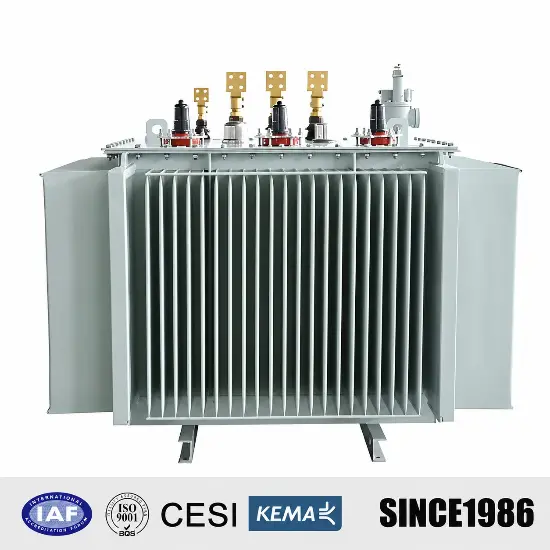

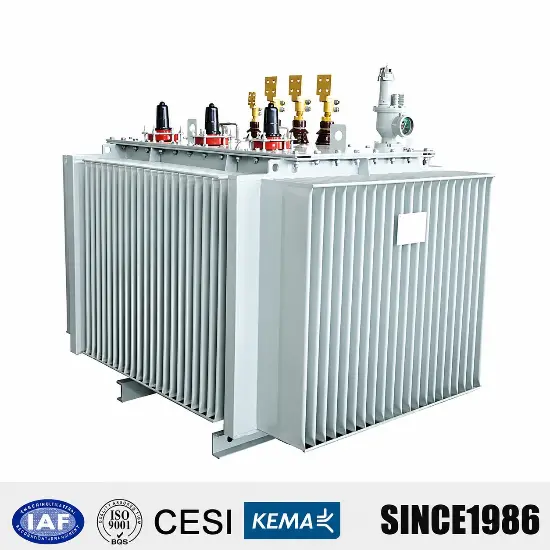

product Photo

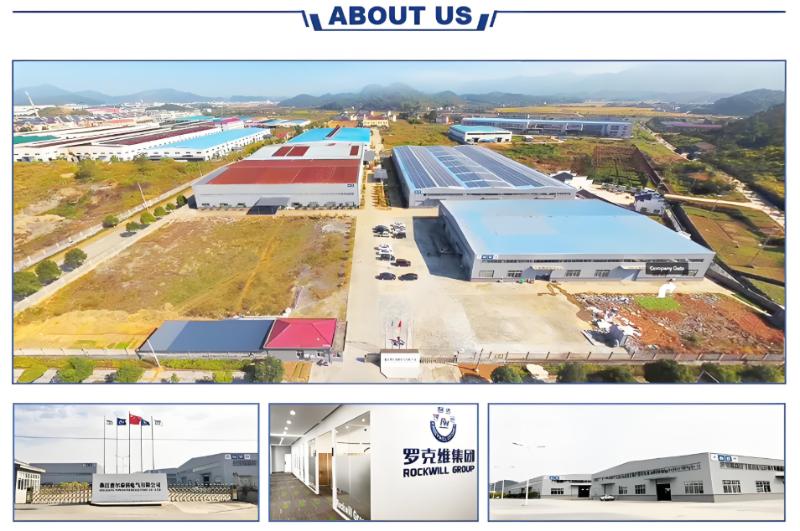

Wenzhou Rockwell Transformer Co., Ltd. which is specialized in producing, developing and marketing power transmission and distribution products. The company is established in 2008, the subsidiary of ROCKWILL GROUP, which is located in Wenzhou city, Zhejiang province, China.
Our main products are including switchgear, ring main unit, transformer, load break switch, SF6/vacuum circuit breaker, substation, auto-recloser, voltage regulator, automatic sectionalizer, tap-changer, CT and PT etc.
Many of these products have the certification reports of the international authoritative KEMA Netherlands and CESI Italy.
We have a professional technical team which can provide you with full design solution and technical support.
Work shop
Certificates
Team
Project
Shipping
Attention
The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
The delivery time: Usually it will take about 15-20 days.
The standard of package: Usually use strong plywood case for protection.
The logo: If you have good quantity, it absolute no problem to do OEM.
Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
Warranty: in 12 month since BL date.
Our Service
quick response in before sales period help you got order.
excell ent service in production time let you know each step we made.
reliable quality solve you after sale headache.
long period quality warranty ensure you can buy without hesitate.
Why Choose Vziman
One-stop supplier globally.
More than 10 years professional experiences in electrical appliance industry.
We offer professional online technology support for perfecting your electrical solution free.
Experienced sales service and suggestion.
All the products with accessories under strict quality control and final inspection before ship
We can assure the powerful competitive price and reliable quality products.
Most competitive shipping rate from our own shipping forwarder.
Warranty assurance: 12 month
Whatever big or small order, we can provide you one-to-one service.
H61 and H59 are high-quality copper alloys with excellent electrical conductivity and corrosion resistance—core advantages for reliable transformer operation. They ensure low energy loss during power transmission (no-load loss reduced by 15%-20% vs. ordinary materials) and enhance the transformer’s durability, withstanding harsh outdoor conditions (e.g., humidity, temperature fluctuations) for a 20-year design service life. The alloys also improve mechanical strength, preventing deformation under long-term load, making the transformer suitable for continuous industrial and civil power supply.
