APD100 series UHF Partial Discharge Detector
Key attributes
| Brand | RW Energy |
| Model NO. | APD100 series UHF Partial Discharge Detector |
| Rated frequency | 50/60Hz |
| Series | APD100 |
Product descriptions from the supplier
General
The APD series high-voltage switchgear partial discharge monitoring device detects the electromagnetic wave radiation generated along with partial discharge and automatically determines the actual detection frequency of on-site partial discharge. Then, data such as the number and frequency of partial discharge detected are uploaded to the server.
Feature
Power supply: DC10~30V, ≤3W; Standard 220V adapter;
Measuring range: -60dBm~+10dBm;
Measurement content: discharge amplitude, discharge frequency;
Connecting cable: coaxial cable;
Communication mode: 1 RS485, MODBUS-RTU protocol; 1 way Lora wireless communication;
Installation method: guide rail installation.
Technical Parameter
| Item | Features | |
Transceiver ATC450-C
|
Power Source | DC24V |
Power Consumption
|
≤1W | |
points
|
≤60 | |
Resolution
|
0.1℃ | |
Communication
|
RS485 | |
Protocol
|
MODBUS-RTU | |
Baud rate (bps)
|
2400、4800、9600、19200 |
|
Environment
|
Temperature:-20 ℃～+55 ℃；Humidity:≤95% |
|

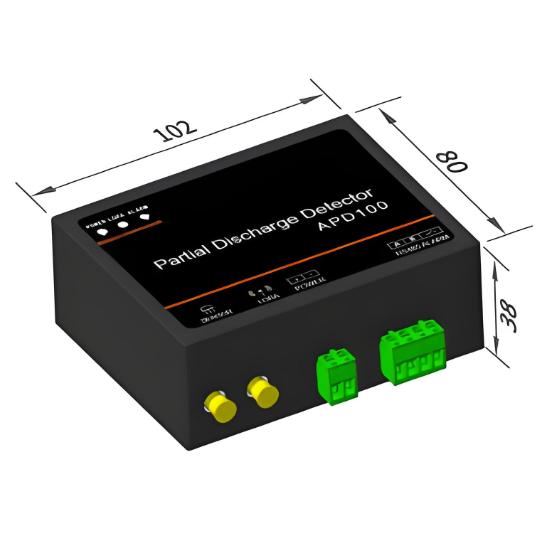

Dimension
