Cable Detection and Analysis of Integrated Wiring System in Intelligent Buildings

Oliver Watts

07/29/2025

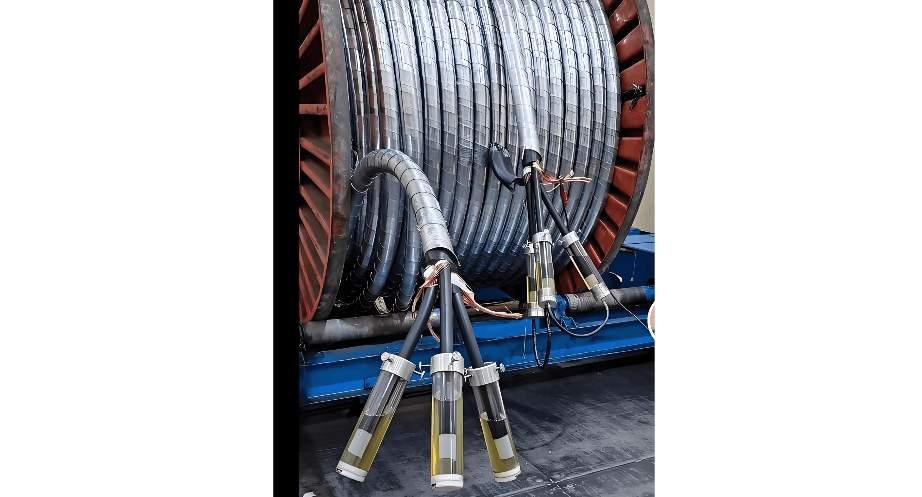

The integrated wiring system of intelligent buildings, as the core carrier of information transmission, functions like a "nervous system." It connects signals such as voice, data, and images, enabling device interconnection and efficient information transmission. Cable detection is a key link to ensure system performance and information security, focusing on index detection, problem troubleshooting, and response measures.

1. Core Cable Detection Indicators

1.1 Appearance and Identification Verification

Check the integrity of the cable sheath (no damage, scratches, deformation, or discoloration). Ensure the sheath is smooth, flat, and flexible (lack of flexibility affects performance and service life). Verify the uniformity of cable thickness to avoid resistance or signal attenuation issues caused by abnormal wire diameters. Also, confirm that identifiers (covering type, specification, manufacturer, production date, etc.) are clear and accurate, facilitating quick identification during construction and operation.

1.2 Connectivity Verification

Use professional testers (e.g., Time Domain Reflectometer, TDR) to send test signals from information access points (data sockets, camera interfaces) to central devices, verifying transmission integrity. For large buildings, develop partitioned test plans, evaluating both physical connections and signal attenuation. Additionally, assess the adaptability of cables to new devices and system upgrades.

1.3 Electrical Performance Testing

Test resistance characteristics (measure DC resistance to avoid excessive energy loss and weak signals), capacitance coupling (ensure stable independent signal transmission; abnormalities cause network interference), and attenuation (use attenuation measurement to check long-distance signal loss), ensuring electrical parameters meet communication needs.

1.4 Length and Characteristic Impedance Matching

Determine cable length per design specifications (excessive length causes signal attenuation; insufficient length leads to wiring failures). Characteristic impedance must match devices to avoid signal reflection (causing return loss and degraded network performance), especially critical in intelligent building high-speed networks.

2. Common Problems and Risks
2.1 Inaccurate or Blurred Identification

Wrong identifications disrupt connections (e.g., server cables misconnected to wrong departments), affecting operations. Blurred identifiers increase troubleshooting time, reducing system availability.

2..2 Connectivity Failures

Connectivity issues interrupt information exchange (e.g., hotel guest-front desk, restaurant-kitchen data transmission), causing poor user experience, security blind spots, and office inefficiencies, threatening normal building operations.

2.3 Electrical Performance Deviations

Abnormal parameters (resistance, capacitance, inductance, impedance) cause signal attenuation, network fluctuations (packet loss, latency), electromagnetic interference (affecting device operation), and even endanger safety systems (fire alarms, elevators), leading to severe consequences.

2.4 Length and Impedance Disorders

Excessive cable length worsens signal attenuation (e.g., long office network cables slow networks and cause packet loss). Mismatched characteristic impedance causes signal reflection, interfering with intelligent controls (flickering lights, unstable air conditioning), increasing energy consumption and equipment wear, and potentially paralyzing system functions.

3. Response Measures and Optimization Suggestions
3.1 Full-Lifecycle Identification Management

Develop identification standards (e.g., commercial building data cables coded with "D" plus floor/room info). Use professional equipment and durable materials; recheck during wiring and update identifiers for system upgrades, improving operation efficiency.

3.2 Precision Repair of Connectivity Failures

Use TDR to locate faults (cable breaks, shorts, loose joints). Repair accordingly: fusion - splice fibers, weld/replace copper cables, or redo joints. Retest post-repair to ensure connectivity.

3.3 Electrical Performance Optimization

Analyze electrical parameters (impedance, resistance) and select suitable cables (e.g., impedance-matched cables for high-speed networks). Standardize construction (avoid over-bending) and regularly retest, building a performance database to detect degradation early.

3.4 Precision Length and Impedance Tuning

Use professional tools (OTDR for fibers, TDR for copper cables) to measure lengths. Match characteristic impedance to standards (e.g., 100Ω for Cat5e/Cat6 cables). Use impedance matchers if needed, ensuring efficient system operation.

4. Conclusion

Cable detection in intelligent building integrated wiring systems is fundamental to stable information transmission and system safety. Through full-process index monitoring, problem prediction, and precise repairs, we strengthen the physical link, driving the system toward greater safety, intelligence, and efficiency, supporting the high-quality development of the intelligent building industry.
