Description：
As a pioneering original equipment manufacturer (OEM) in China’s recloser industry, we have accumulated decades of R&D expertise, taken the lead in establishing the original industry standards, built a fully independent end-to-end production system, and delivered reliable product solutions for power grid construction.

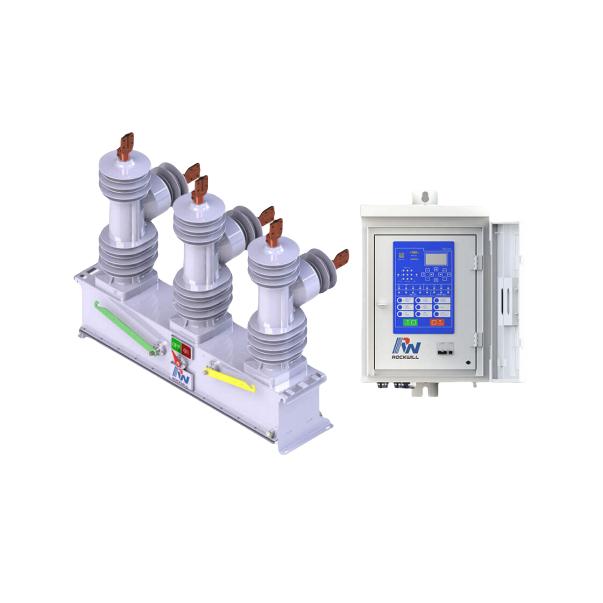

The RCW series automatic circuit reclosers can use on overhead distribution lines as well as distribution substation applications for all voltage classes at 50/60Hz power system. and it’s rated current can reach 1250A.The RCW series automatic circuit reclosers integrates the functions ofcontrol, protection, measurement, communication, fault detection, on-linemonitoring of closing or opening.The RCW series vacuum recloser is mainly combined with integration terminal, current transformer, permanent magnetic actuator and it’s recloser controller.
Features：
Automatic Fault Isolation: Accurately identifies and isolates permanent faults within milliseconds, reducing outage scope by over 85%.
Automatic Service Restoration: Restores power to non-faulted sections within 2 seconds via intelligent topology reconfiguration, ensuring continuous operation of critical loads.
Fault Detection and Protection: Employs high-frequency transient recording and AI diagnostics to accurately identify 32 types of fault characteristics, enabling adaptive protection.
Sectionalizing Protection: Supports four-level grading coordination and virtual segmentation with ±10ms timing accuracy, eliminating the need for additional physical switches.
High Reliability and Durability: Core components are validated for 100,000 mechanical operations, featuring wide-temperature operation (-40°C to 75°C) and IP68 protection rating.
Environmentally Friendly: Utilizes vacuum arc-extinguishing technology with zero SF6 gas usage,
Parameters:
The voltage classes of some of these Automatic Reclosers include 6kV, 6.3kV, 6.6kV, 6.9kV, 7.2kV, 10kV, 10.5kV, 11kV, 11.5kV, 12kV, 13.2kV, 13.8kV, 14.5kV, 14.4kV, 15kV, 15.5kV, 15.6kV, 17.5kV, 20kV, 21.9kV, 22kV, 24kV, 30kV, 33kV, 33.5kV, 34.5kV, 35kV, 36kV, 38kV, 38.5kV, 40.5kV, 44kV, 45kV, 46kV, 66kV and 69kV. Rated Short-Circuit Breaking Current includes 8kA, 12.5kA, 16kA, 20kA, 25kA, 31.5kA and customization is available.
Rated maximum voltage |
15kV |
Rated maximum current |
1250A |
Rated frequency |
50Hz |
Rated short circuit breaking current |
12.5kA |
Rated peak value withstand current |
31.5kA |
Rated 1min power frequency withstand voltage (Three-phase Silicone rubber pole (unable the gas)) |
45kV |
Rated lightning impulse voltage (Three-phase Silicone rubber pole (unable the gas)) |
120kV |
Operation sequence |
C-0.5-CO-2-CO-5-CO (Magnetic actuator) |
Mechanical life |
n:30000 (Magnetic actuator) |
Power supply and operating voltage |
110/220V (Customized) |
Ratio of current transformer |
400/1A (Customized) |
Number of voltage sensors (Three-phase Silicone rubber pole (unable the gas)) |
≤3 |
Opening time |
≤30ms (Magnetic actuator) |
Closing time |
≤40ms (Magnetic actuator) |
Minimum creepage distance |
31, level4 (mm/kV) |
Minimum distance between phases |
360mm |
Potential transformer |
110/220V (Customized) |
Cable length |
6,8,12m (Customized) |
Cable clamp (Three-phase Silicone rubber pole (unable the gas)) |
2-hole NEMA |
Lightning arrester |
≤6 |
Mounting type |
Single / double column |
With optional relay protection & logics for user choice |
Instantaneous over-current protection Timing over-current protection Negative sequence over-current protection Directional over-current protection(⁽¹⁾) Over-voltage protection / Under voltage protection Programmable protection relay curves (total 10 nos ANSI/IEC curves) Cold load pickup protection TCC + Hot line tag Earth protection E/F SEF + Zone- Sequence Co-ordination More relay functions can be customized |
With optional communication protocols & I/O port for user choice |
RS-232 and RS-485 ports supporting DNP3.0 communication protocol support Modbus communication protocol is optional IEC 60870-501 communication protocol support IEC 60870-5-104 communication protocol support The recloser can communicate through GPRS(or) GSM(or) GPRS/GSM module with English or Specified language |
With optional functions for use |
Rated currents, System phase current, Rated voltages, System phase voltage and secondary low voltage power supply voltage Frequency power (kWh), reactive power (kVarh), power factor |
With optional reclosing interval for user pre-program |
reclosing times setting support Dead time setting support |
With events recording function |
SOE 10000 operations record Fault record and normal operation record Note：mean should customized by manufacturer if needed |
Environmental requirement:
Maximum temperature: |
+40°C |
Minimum temperature: |
-30°C |
Monthly average humidity |
95% |
Humidity: |
90% |
Above sea level: |
2500m or higher |
Ambient air Not apparently polluted by corrosive and flammable gas, vapor |

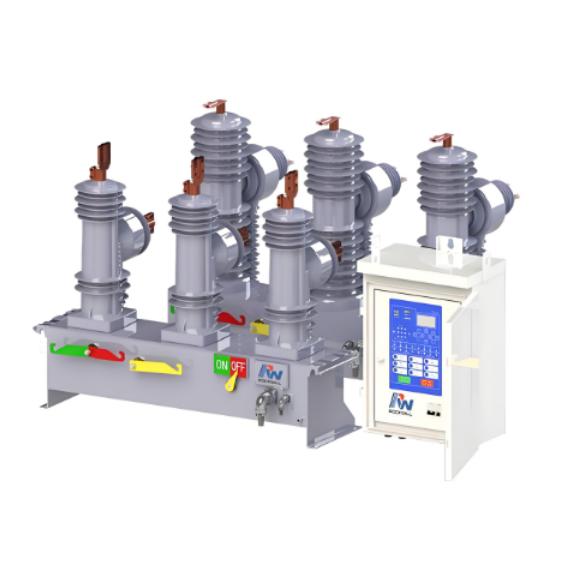

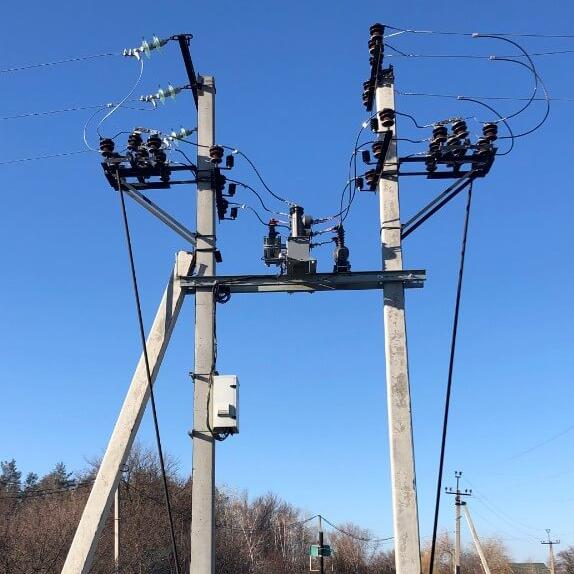

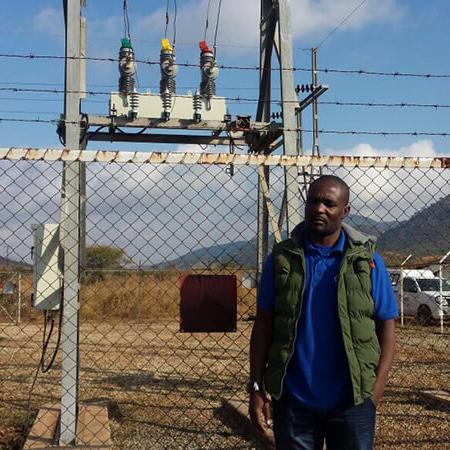

Product show:
ใช่ การกำหนดค่า RCWP นำเสนอตัวเลือกที่มีประสิทธิภาพทางคุ้มค่าภายในครอบครัว RCW+ ประกอบด้วยเซ็นเซอร์คู่ (แรงดัน + กระแสไฟฟ้า) คอนโทรลเลอร์ระดับแฟล็กชิพ และการทำงานเชิงกล 30,000 ครั้งพร้อม กลไกการทำงานแม่เหล็กถาวร ขับเคลื่อนการเชื่อมโยงสามเฟส
เพื่อให้ได้ราคาที่ประหยัดมากขึ้น ตัวเลือกดังต่อไปนี้สามารถลดระดับลงได้:
สิ่งนี้ทำให้ลูกค้าสามารถเริ่มต้นด้วยแพลตฟอร์มฐานที่ปฏิบัติตามมาตรฐานและเชื่อถือได้ และจ่ายเฉพาะคุณสมบัติที่จำเป็นจริงๆ เท่านั้น
