ARD3 Motor Protection Controller
Key attributes
| Brand | RW Energy |
| Model NO. | ARD3 Motor Protection Controller |
| Rated frequency | 50/60Hz |
| Series | ARD3 |
Product descriptions from the supplier
General

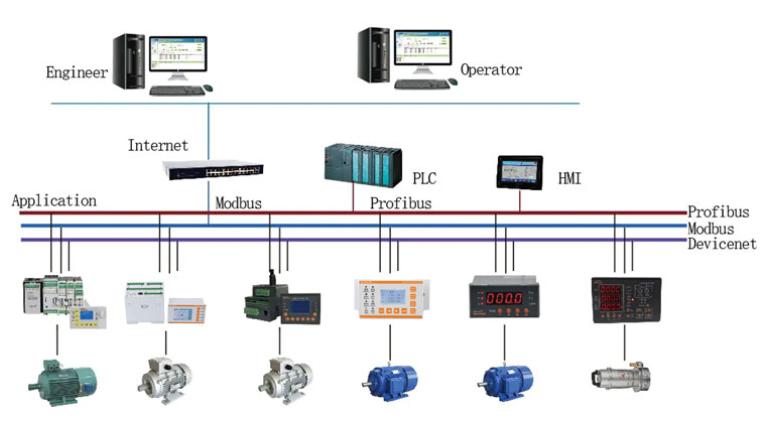

ARD3 smart motor protectors can protect motors from many faults during the motor running and display the running state clearly and intuitively through LCD.The protector has RS485 remote communication interface and DC4-20mA analog output, which is convenient to form a network system together with control machines like PLC and PC.
Feature
U, I, P, S, PF, F, EP, Leakage, PTC/NTC
16 protect function
Start control function
9 programmable DI
5 programmable DO
Modbus-RTU or Profibus-DP communication
1 DC4-20mA analog output
20 fault record
Anti-shaking function

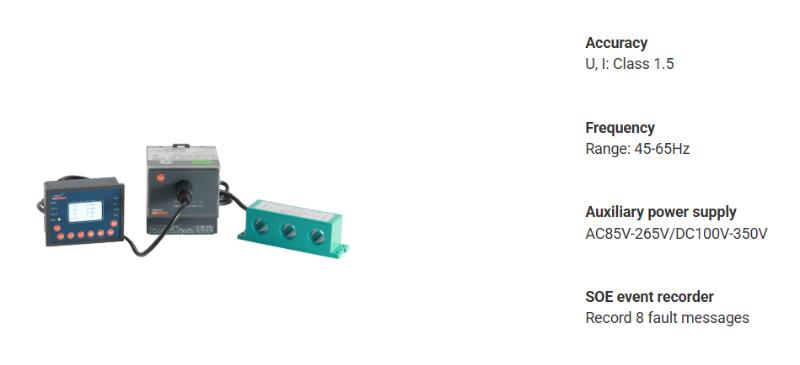

Parameters
Technical parameters |
Technical indicators |
|
Protector auxiliary power supply |
AC85-265V/DC100-350V,power comsumption 15VA |
|
Rated working voltage of the motor |
AC380V / 660V, 50Hz / 60Hz |
|
Rated operating current of the motor |
1 (0.1A-5000A) |
Small special current transformers |
5 (0.1A-5000A) |
||
25（6.3A-25A） |
||
100（25A-100A） |
||
250（63A-250A） |
Special current transformers |
|
800（250A-800A） |
||
Relay output contact capacity |
Impedance load |
AC250V、10A |
Relay output contactor, |
5 channels,AC 250V 6A |
|
Switching input |
9 channels,opto-coupler isolation |
|
Communication |
RS485 Modbus_RTU, Profibus_DP |
|
Environment |
Working temperature |
-10ºC～55ºC |
Storage temperature |
-25ºC～70ºC |
|
Relative humidity |
≤95﹪No condensation, no corrosive gas |
|
Altitude |
≤2000m |
|
Pollution levels |
Class 2 |
|
Protection grade |
Main body IP20, split display module IP54 (installed on the cabinet panel) |
|
Installation category |
Level III |
|

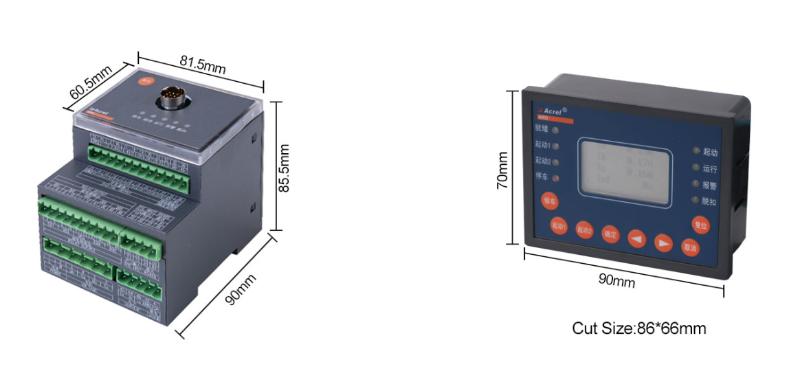

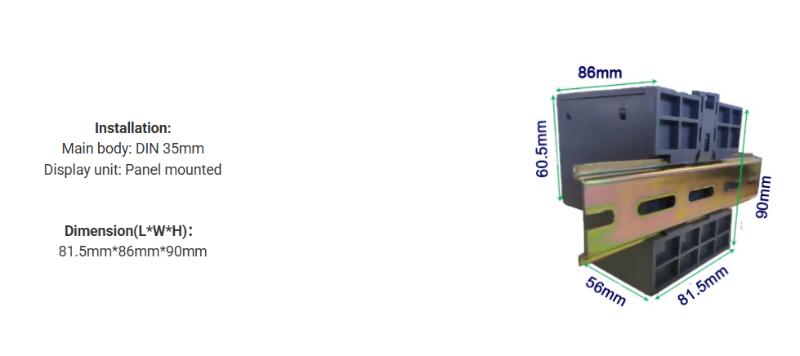

Dimensions
Typical Connection
