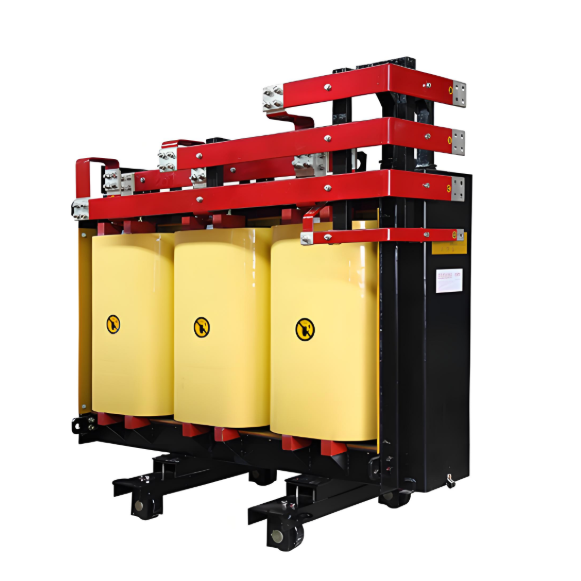

Amorphous alloy core dry-type transformer

Name: Amorphous alloy core dry-type transformer
Brand: Wenzhou Rockwill Electric Co., Ltd.
SKU: 1646
Availability: InStock

Wenzhou Rockwill Electric Co., Ltd.

17yrs 700++ staff 108000+m² US$150000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	ROCKWILL
Model NO.	Amorphous alloy core dry-type transformer
Rated voltage	11kV
Rated frequency	50/60Hz
Series	SC(B)H

Description

Product Overview

SC(B)H/SCL(B)H-200-3150.Main application fields: power plants, substations, industrial and mining enterprises, user power distribution stations, and other level power and distribution systems at 35kV and below.

Product superiority

Classified as a high-efficiency, energy-saving product. Employing three-phase resin-insulated dry-type amorphous transformer technology, meeting the corresponding energy efficiency requirements, with features of high efficiency, energy savings, and stable reliability, suitable for 10kV-level power and distribution systems. Product parameters can be customized, such as capacity, voltage ratio, impedance, noise, losses, K-factor, etc.

Product-related parameters

Feature	Description
Ultra-low No-load Loss	70–75% lower than conventional silicon steel dry-type transformers; no-load loss is only ~1/3 of silicon steel core
Energy Saving	Significant reduction in operating cost; isotropic soft magnetic material with low magnetizing power
High Resistivity	3–6× that of silicon steel; eddy current loss only 20–30% of silicon steel
Flame Retardant & Self-extinguishing	Epoxy resin cast winding, no oil, high fire safety
Low Noise	Reasonable magnetic flux density design, special noise reduction materials; well below JB/T 10088
Strong Short-circuit Withstand	Three-phase three-limb / five-limb core structure, compact and robust
Moisture & Corrosion Resistance	Core fully encapsulated with resin and high-temperature silicone gel
Overload Capability	Can operate at 120–150% rated load with forced air cooling
Maintenance Free	No oil, no leakage, suitable for indoor and harsh environments

Amorphous alloy core dry-type transformer

Additional Specifications:

Frequency: 50 Hz / 60 Hz
Phase: Three-phase
Core Material: Amorphous alloy strip (Fe-based, 0.02–0.04 mm thickness)
Winding: HV – epoxy resin vacuum cast; LV – copper foil
Insulation Class: B / F / H
Cooling Mode: AN / AF
Altitude: ≤ 1000 m (derated above)
Ambient Temperature: –25 °C ~ +40 °C
Short-time Withstand: ≤ 25 kA for 2 seconds

Standards

Type	Standard Number	Core Purpose
International	IEC 60076-11:2018	Dry-type transformer general rules
China Special	GB/T 22072-2018	Amorphous core dedicated standard
China General	GB/T 1094.11-2022	Domestic dry-type transformer specification
